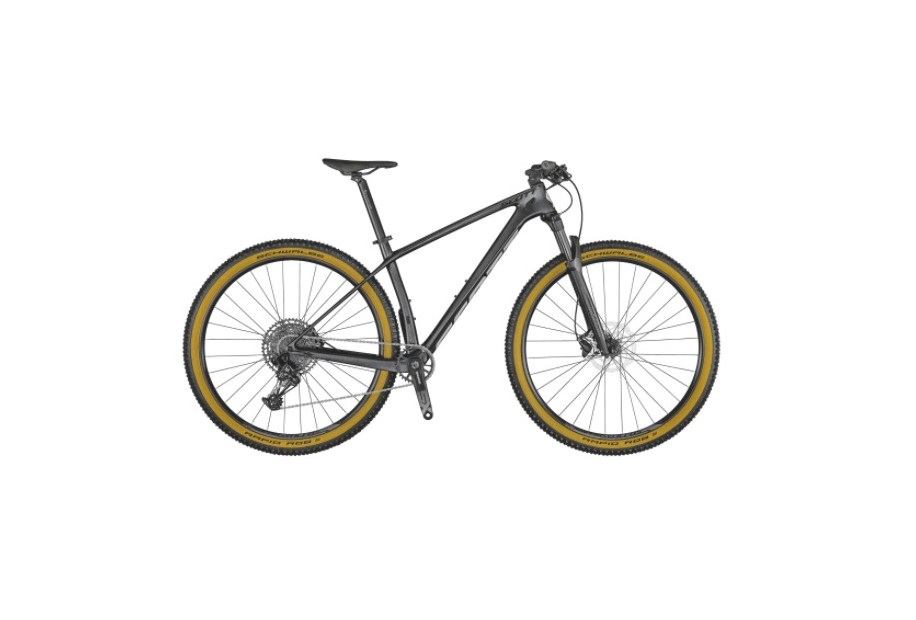

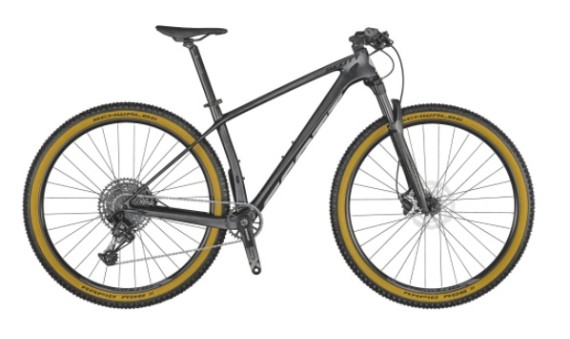

SCOTT SCALE 940 GRANITE BLACK

Frame

Scale 3 Carbon / IMP Technology / HMF

BB92 / SW DM dropouts for Boost 12x148mm

SDS2 advanced Shock & Standing Damping System

ICCR Cable routing

Fork

RockShox Judy Silver TK Solo Air

15x110mm QR axle / 42mm offset / Tapered Steerer

Reb. Adj. / Lockout / 100mm travel

Remote System

SCOTT RideLoc / below bar remote / integ. Grip clamp

Rear Derailleur

SRAM NX / Eagle 12 Speed

Shifters

SRAM SX Eagle Trigger

Crankset

SRAM SX Eagle DUB Boost

32T

BB-Set

SRAM DUB PF integrated / shell 41x92mm

Chain

SRAM CN SX Eagle

Cassette

SRAM SX-PG1210 / 11-50 T

Brakes

Shimano MT200 Disc

Rotor

Shimano SM-RT10 CL / 180 ant e 160 post

Handlebar

Syncros Alloy 6061

T shape Flat / 9° / 740mm

Syncros Pro lock-on grips

H'stem

Syncros FL2.0

6° / integrated Spacer & Top Cap

6061 Alloy / 31.8mm / 1 1/8"

Seatpost

Syncros / 31.6x400mm

Seat

Syncros Belcarra Regular 2.5

Headset

Syncros Pro Drop in / Tapered 1.5"-1 1/8"

Bearing diameter size 42mm and 52mm

Hub (Front)

Formula CL-811 / 15x110mm

Hub (Rear)

Formula CL-3248 / Boost 12x148mm

Spokes

Stainless Black 15G / 1.8mm

Rims

Syncros X-25 / 32H / 25mm

Front Tire

Schwalbe Rapid Rob 29x2,25" / Active line

Rear Tire

Schwalbe Rapid Rob 29x2,25" / Active line

Approx weights in KG

12.40

pprox weights in LBS

27.34

Max. System Weight

128 kg

The overall weight includes the bike

the rider

the equipment

and possible additional luggage
